ABB Quintus fluid Cell Press 29000 psi

No longer available

ABB Quintus fluid Cell Press 29000 psi

New Fairfield, CT

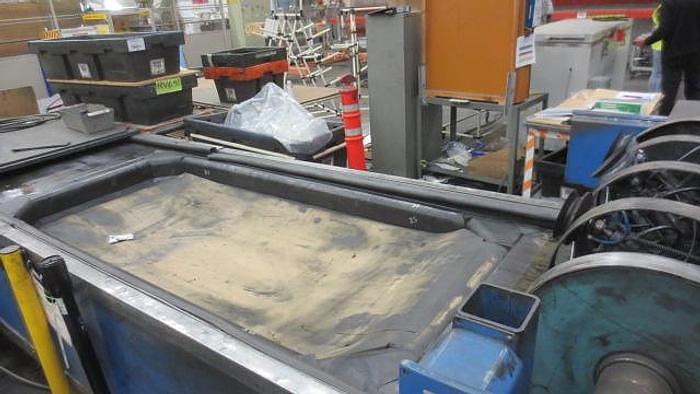

Used ABB Quintus Fluid Cell Press Model QFC 0.9 x 2.0 - 2000 / 62000 ton press force 35.4” x 78.7” Table, 2000 bar / 29,000 psi forming pressure Operating Pressure Programmable up to 29,000 psi Press Tables One (1) with independent operator control station Press Table Dimensions 0.9 m x 2.0 m (35.4” x 78.7”) useable Press Table Depth (maximum) 150 mm (6.0”) Press Cycle Time 2 min 35 seconds to full pressure - shorter cycle times to lower pressure or with tray filler plate installed to reduce depth of tray Press Frames Pre-stressed, wire-wound forged main cylinder and end frame Fluid Cell Design Cassette type, fast change w. repairable natural rubber fluid cell Fluid Cell Change System Semi-automatic – change over in one shift Features and comments Press wear pad automatic pick-up & roll-up system Safety interlocks with full sound enclosure Full compliment of spare parts including spare diaphragms
