Despatch Drop Bottom Furnace

Despatch Drop Bottom Furnace

Contact us for price

Location:New Fairfield, CT

orCall +1 203-746-2199

Description

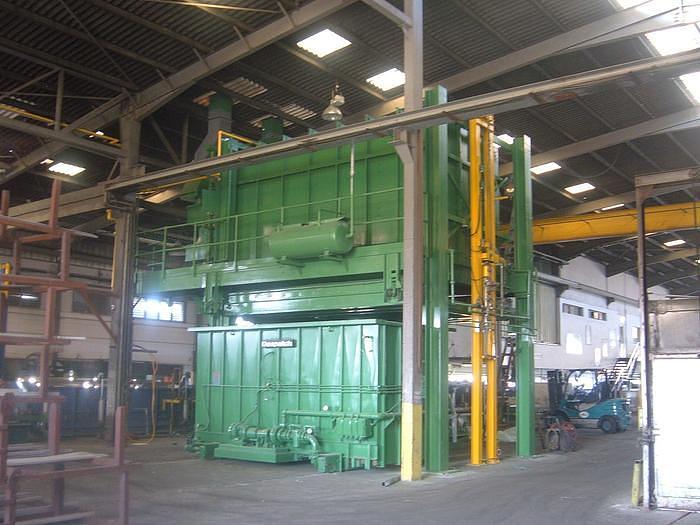

One (1) USED Despatch Drop-Bottom Heat Treat Furnace with Water Quench Tank Manufactured in 1993

Specifications

ModelQuick Quench, Despatch S/N 150205
ConditionUsed
Furnace heat systemDesign capacity is 4’ wide x 6’-6” x 12’ long (defined by furnace part basket size - useable area)
HeatingFour (4) Eclipse indirect natural gas burners; 3,000,000 BTU/ hr capacity
Operating temperature range500º to 1200º F; uniformity +/- 5 degrees
Heat load1,000 lb. aluminum plus 1,000 lb. steel rack; will stabilize in 30 min after loading.
Furnace liningCeramic fiber
Furnace doorBi-parting pneumatic horizontal sliding doors
Furnace controlsDespatch main control and electrical panel, Allen Bradley PLC, Honeywell digital controller, strip chart recorder and other control modules as described in manuals.
Quench tankOne (1) gas heated tank with independent heating system, motorized track, 3000 gallon capacity, designed for 180º F.
