20' Farnham Roll Forming Machine

20' Farnham Roll Forming Machine

Contact us for price

Location:New Fairfield, CT

orCall +1 203-746-2199

Description

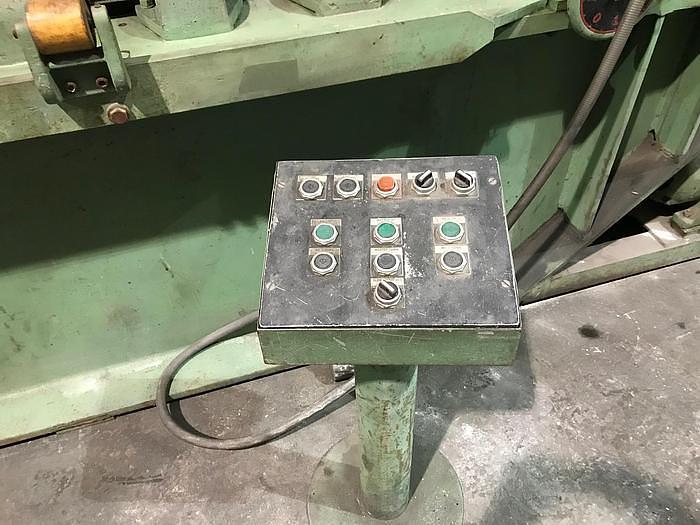

20' X .250" FARNHAM AIRCRAFT TYPE FORMING ROLL Pedestal Controller Variable Speed Roll Drive Motor Top Work Roll Backed Up By (24) 1.5" Bronze Roll Supports Top Work Roll Is Vertically Adjustable, Bottom (2) Work Rolls Are Backed Up By (44 Bronze Roll Supports, 22 Each Roll, Each 1.5" Wide) Vari-Drive Motor In & Out Adjustment Of Bottom Rolls For Controlling rolling Diameter Maximum Useable Length Of Rolls............ 20' Maximum Material Thickness (at 65,000 PSI).... .250" Minimum Radius.............................1.5" Top Roll Diameter.......................... 3" (2) Bottom Roll Diameters.................. 3.5" Roll Drive Motor, Horsepower............... 5 HP Overall Dimensions, L x W.................. 28'10" x 33" Overall Height............................. 9'9" Weight, Approximately...................... 30600 LBS

Specifications

ConditionUsed
NoteThis Machine Is Excellent For Rolling Lead Edges, Roll Skins, Fuselage Sections & Wing Sections
