ABB Quintus fluid cell press

ABB Quintus fluid cell press

Contact us for price

New Fairfield, CT

orCall +1 203-746-2199

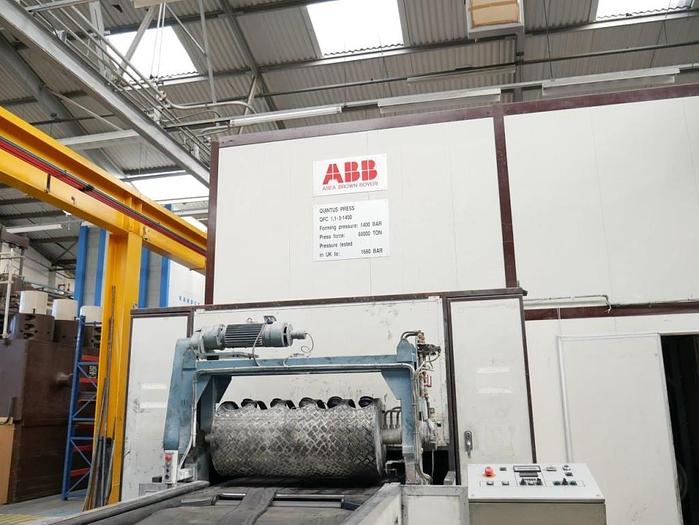

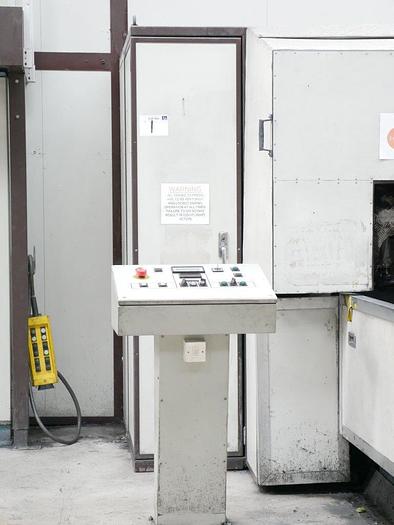

Used ABB Quintus Fluid Cell Press Model QFC 1.1 x 3.0 – 1400 / 68000 ton press force 1400 bar / 20,000 psi forming pressure Operating Pressure Programmable up to 20,000 psi Press Tables Two (2) with independent operator control stations Press Table Dimensions 1.1 m x 3.0 m (43.3” x 118.1”) useable Press Table Depth (maximum) 254 mm (10.4”) Press Cycle Time 135 seconds to full pressure - shorter cycle times with tray filler plate (included) installed to reduce depth of tray Press Frames Pre-stressed, wire-wound forged main cylinder and end frame Fluid Cell Design Cassette type w. repairable natural rubber fluid cell Fluid Cell Change System Semi-automatic – change over in one shift Features and comments Press details including weights, measures and foundation requirement available upon request Press wear pad automatic pick-up & roll-up system included Safety interlocks with full sound enclosure Full compliment of spare parts
