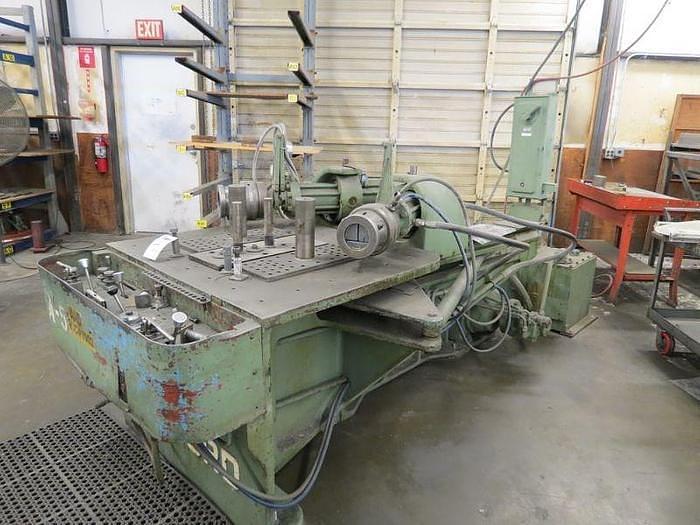

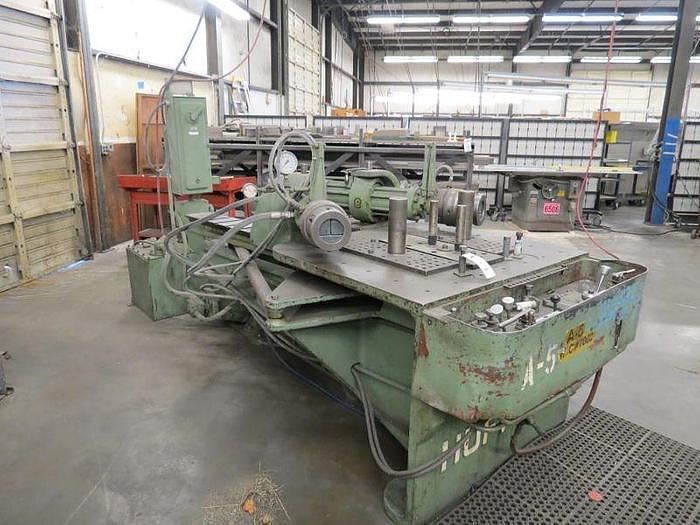

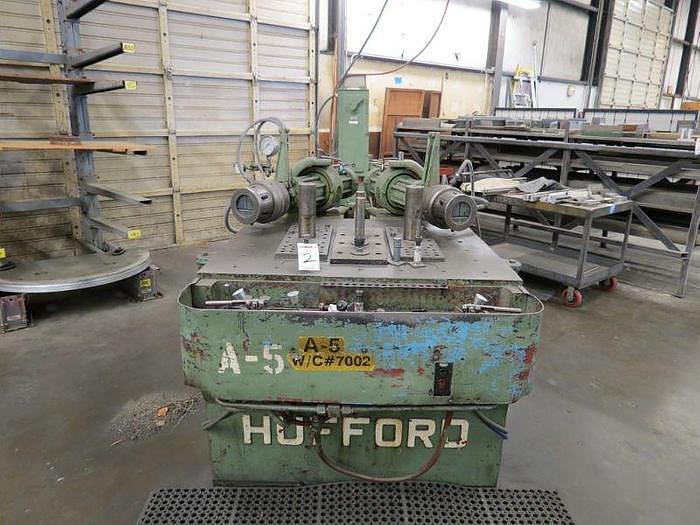

Hufford A-5 Stretch press
Hufford A-5 Stretch press
Contact us for price
Location:New Fairfield, CT
orCall +1 203-746-2199
Description
Capacity 12 Tons
Table Dimensions 30” x 65”
Table Height 35.5”
Maximum Part Length Formed 219”
Minimum Part Length Formed 10”
Maximum Sheet Width Formed 10”
Maximum Die Height 20”
Maximum Die Length @ 180 Deg. 68”
Minimum Die Length @ 180 Deg. 20”
Tension Cylinder Stroke 18.5”
Operating Pressure Maximum 2,000 PSI
Overall Floor Space Required 23’ 6” x 14’11” F-B
Overall Height 4’ 7”
Approximate Weight 14,000 lbs.
Specifications
Manufacturer | Hufford |
Condition | Used |
