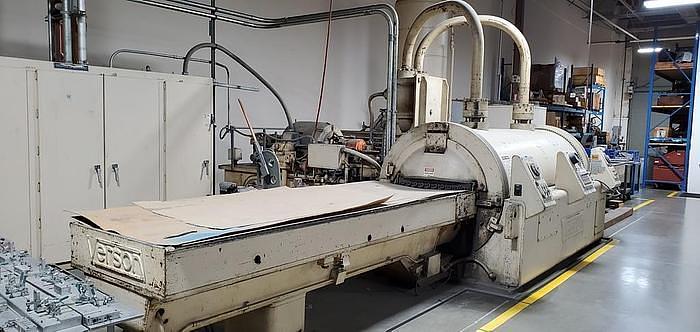

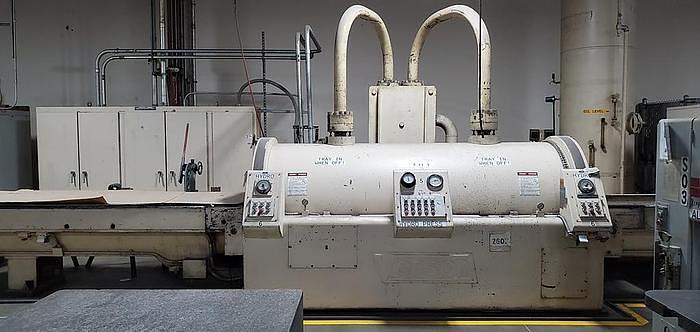

Verson Wheelon Fluid Cell Press 36 x 120

Verson Wheelon Fluid Cell Press 36 x 120

Contact us for price

Location:New Fairfield, CT

orCall +1 203-746-2199

Description

Used Verson Wheelon Direct Acting Hydraulic Forming Press Catalog Specifications SPECIFICATIONS Flex-Die Rubber Pad Fluid Forming Capacity Tonnage – 10,800 Pressure Forming – rated maximum 5,000 psi Trays – Two Controls Control Station Located in Front In/Out Buttons located on Each Tray • Automatic Tray Controls & Interlocks • Semi-Automatic Pad Roll Up Devices On Both Tables • Fast Acting Duplex Loading Trays • Rubber Pad Lubrication System • 75 H.P. Main Motor, plus 30 HP Auxiliary Motor (2) Operator Control Stations for selecting forming pressure, tray in/out, evacuation and emergency stop, located at each end of Press Barrel Selectable “Manual” or “Automatic” press cycle modes of operation Under power

Specifications

ManufacturerVerson
Modelwheelon
Year1969
ConditionUsed
Tray size at top (both) w x l36” x 116”
Right tray size at bottom at 4 1/2” depth30 ¼” x 110 ¾”
Left tray size at bottom at 6” depth26” x 104”
ControlsCentral Master Control Station for all press functions.
