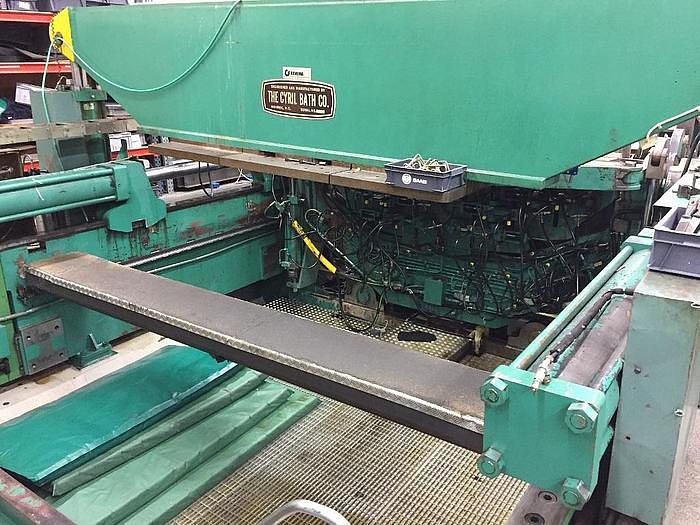

400 Ton Cyril Bath VTL400CJ Sheet Stretch Forming Press

400 Ton Cyril Bath VTL400CJ Sheet Stretch Forming Press

Contact us for price

New Fairfield, CT

orCall 203-746-2199

Description

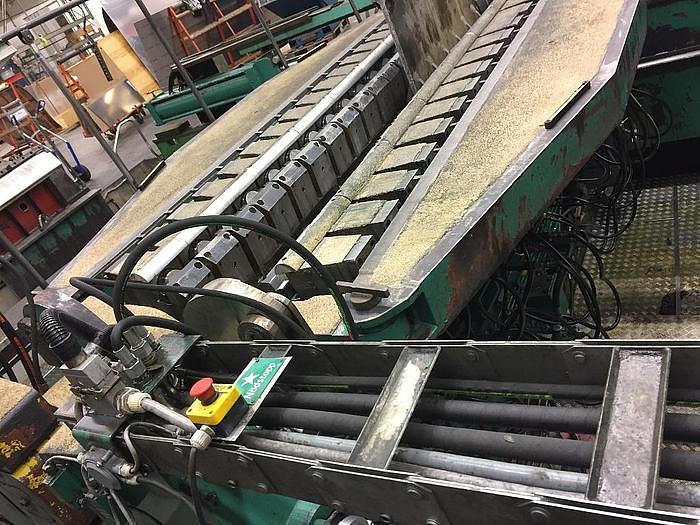

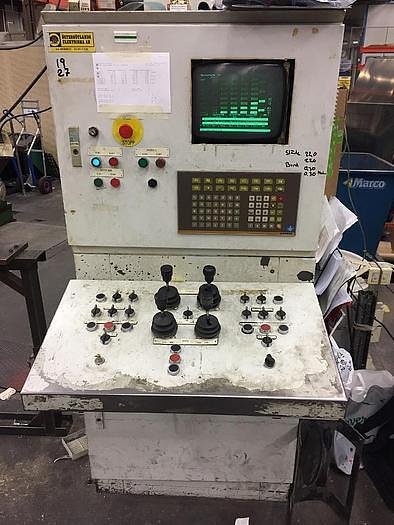

MACHINE SPECIFICATIONS DIE TABLE Maximum Thrust 400 tons @ 2700 psi Size 12” width x 255” length (305mm x 3050mm) Stroke 36” (915mm) Tilt Guide Post – 10” stroke (250mm) Rotates 90 degrees JAWS Type Direct Acting 7 Segment Power Curvable Maximum Pressure 3000 psi Jaw Swing Horizontal through 105 degrees, powered and float Maximum Distance Between Jaws 120” (3050mm) Jaws Vertical Minimum Distance Between Jaws 3” (76mm) Jaws Horizontal Jaw Opening 1½ inches (38mm) Horizontal Angulation + / - 10 degrees CARRIAGES Number of Cylinders Two per Jaw Stroke 60” (1524mm) Capacity (Horizontal) 150 tons per Jaw @ 2500 psi BULLDOZER Type Gantry Clamp Force 15 – 150 tons Cylinders 2 each – pull Stroke 36” (915mm) CONTROLS Siemens CNC

Specifications

ConditionUsed
